Free Water Pump

Pompa per lo scarico dell'acqua di condensa

What Free Water Pump is

Free Water Pump is a removing system for the unloading of condensation water; it is made up of a pump block and a measurement block. Thanks to its innovative design and its small dimension, it can be installed inside the logline allowing an easy and rapid installation.

Data sheet:

  • payload 12,6 l/hour
  • maximum aspiration: 2 vertical meters between the measure block and pump
  • maximum transmission: 10 vertical meters between pump and water output
  • Voltage 230 VAC / 50 HZ
  • Pump dimensions L30 X D80 X H57 mm
  • Measure block dimensions L31 X D91 X H49 mm
  • The device has an automatic operation of Type 1C

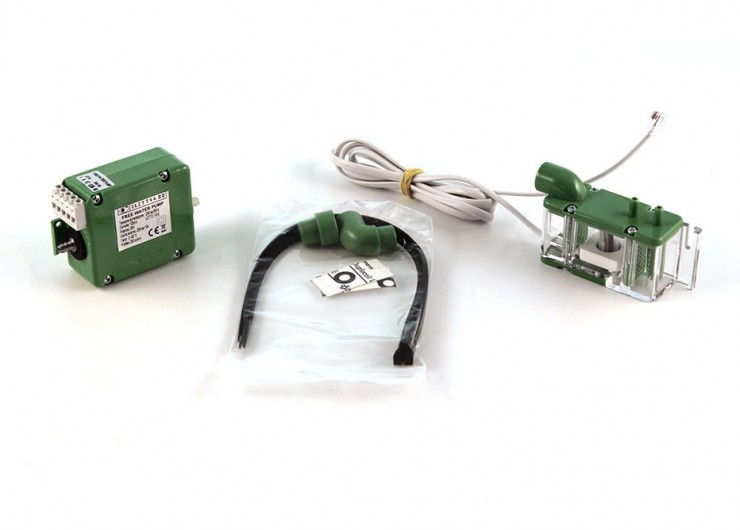

Each kit contains:

  • 4 black cable ties 290 mm x 3,6 mm
  • Screw 5 poles terminal for the electrical connection
  • 1 pump block
  • 1,5 m transparent silicon piper with a diameter of 4x6mm
  • 2 pieces of double-sided tape l=50 mm
  • 1 measure block with cable, l= 1,50 m
  • Angular connection
  • 1 adaptation from 16 to 18 mm
