Free Water Pump

Kit for the empty of condensation water of air-conditioners

  1. What is Free Water Pump

    Free Water Pump is a removing system for the empty of condensation water, it is made up of a pump block and a measure block.

    Thanks to its innovative design and its small dimension, it can be installed inside the logline allowing an easy and rapid installation.

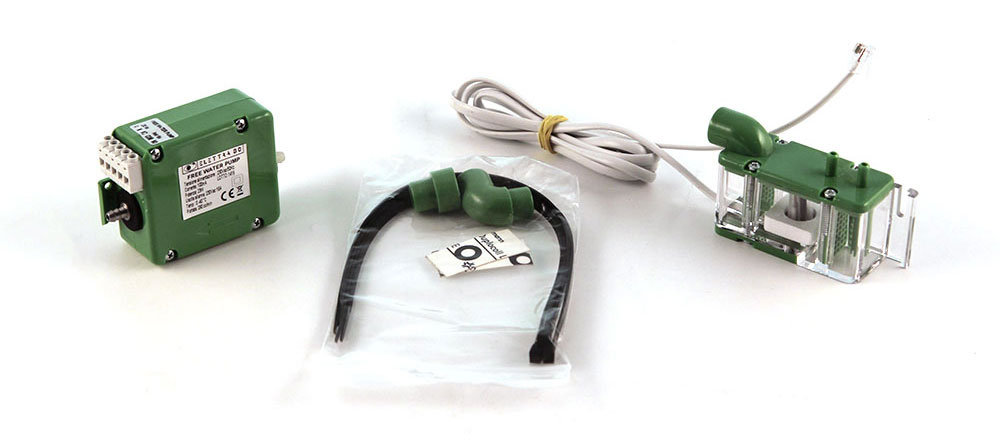

  2. What is inside the Kit

    The kit is completed with the installation instruments. Each kit contains:

    • 1 pump block
    • 1 measurement block
    • 16mm curve
    • 1 adaptation from 16 to 18 mm
    • 1,5 m silicon piper with a diameter of 4x6mm
    • 4 cable ties
  3. Data sheet:
    • payload 12,6 l/hour
    • maximum aspiration: 2 vertical meters between the measurement block and pump
    • maximum transmission: 10 vertical meters between pump and water output
    • Voltage 230 VAC / 50 HZ
    • Pump dimensions L30 X D80 X H57 mm
    • Measurement block dimensions L31 X D91 X H49 mm

Non perdere le nostre offerte Lancio

* L'offerta commerciale è valida per un solo ordine per partita iva

How to order our Kit

To order the Free Water Pump kit you can fill the following form specifying the quantity or you can download the form and send it by e-mail or fax.

Instant delivery – Free shipment – Cash on delivery payment

Company name (*)

Address (*)

Post Code

City (*)

Fiscal code (*)

VAT number (*)

Phone (*)


E-Mail (*)

Select the quantity (*)

Form to order via Fax or E-Mail
